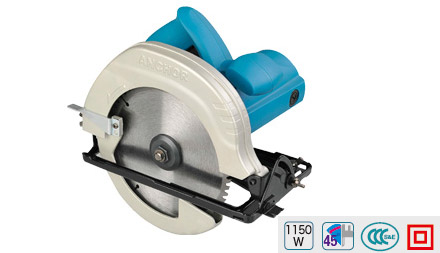

Product Name:Circular Saw
Model
M1Y-TM01-185
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Max Disk Diameter(mm)
185
Rated Power Input(W)
1150
No-Load Speed(r/min)
5000
Max.Cutting Capacity(mm)
64
Max.Cutting Angle
45°
Net.Weight (kg)
4.0
Order No
C1
Mill-cut quickly
Performance characteristics

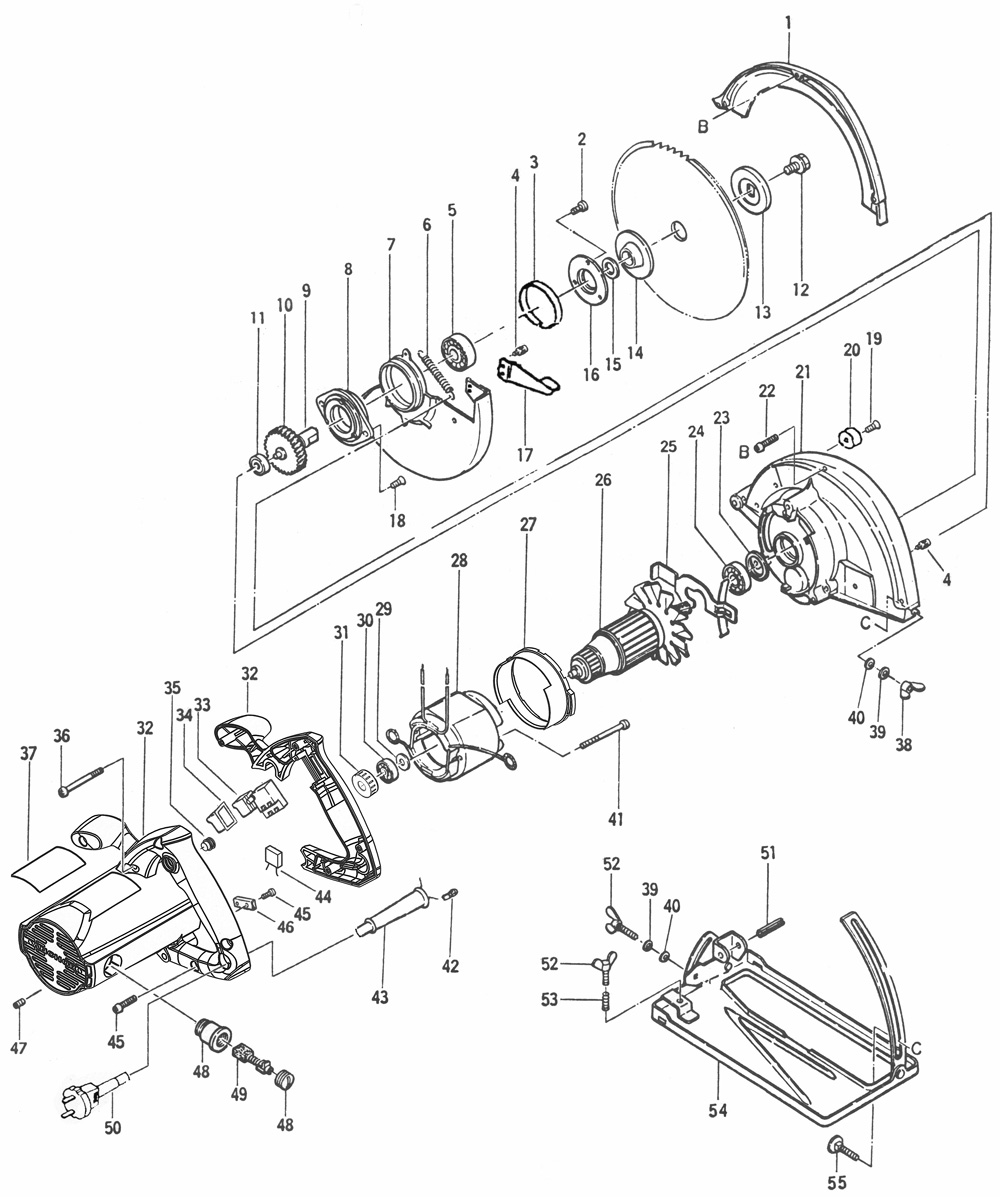

1    partno:530710013    Side Cover    12    partno:233810012    Screw M4*12    33    partno:312010001    Copper Rod    14    partno:234110025    Screw M4*6    15    partno:250110021    Bearing 6202-DDW    16    partno:340110005    Tension Spring    17    partno:531410028    Wheel Guard    18    partno:530310165    Bearing Sleeve    19    partno:320210069    Output Shaft    110    partno:320110010    Gear    111    partno:250110066    Bearing 626-2Z    112    partno:210110012    Hex Bolt M8*16    113    partno:323710001    Clamp Nut    114    partno:323810001    Clamp Flange    115    partno:320610014    Distance Ring 20*15*4.5    116    partno:311510031    Cover 50.5*21.2*1.8*5    117    partno:311910021    Corner Wrench    118    partno:233310003    Sunk Screw M5*10    219    partno:233310008    Sunk Screw M6*22    120    partno:143010002    Rubber Column 18*5.5*13.5    121    partno:530110132    Gear Case    122    partno:703561002    Screw M5*20    323    partno:140610011    Rubber Ring 34*28*3    124    partno:250110015    Bearing 6001-DDW    125    partno:311810001    Lock Prong    126    partno:510210334    Armature    127    partno:520310042    Windproof Shield    128    partno:510110114    Stator    129    partno:521610026    Insulation Ring    130    partno:250110010    Bearing 608-2RS    131    partno:140810014    Bearing Seat    132    partno:520110437    House    133    partno:410110061    Switch    134    partno:141310008    Switch Cover    135    partno:141710001    Lock Cap    136    partno:234510008    Screw M5*50    337    partno:621911836    Nameplate    138    partno:221610001    Wing Nut M6    139    partno:240210009    Spring Washer M6    240    partno:240110035    Flat Washer 17.8*6.3*1.8    241    partno:234110012    Screw ST5*63    242    partno:450110004    Terminal(Blue)    443    partno:140310002    Power Cable Jacket    144    partno:440210001    Capacity 0.22uF-2TH    145    partno:233610016    Screw with washer ST4*16    546    partno:522010011    Strain Relief (Plastic)    147    partno:231710001    Set Screw M5*8    248    partno:430210031    Brush Holder(with Brush Cover)    149    partno:430120023    Carbon Brush    150    partno:420110068    Power Cable 2*1*2.7YZW    151    partno:241010003    Cotter    152    partno:235710006    Wing Screw M6*16    253    partno:340510033    Spring 8.6*12*0.9*5    154    partno:311710009    Base Plate    155    partno:211210005    Locking Bolt M6*16    156    partno:314910001    Guide Ruler    157    partno:311910020    Socket Wrench    1
