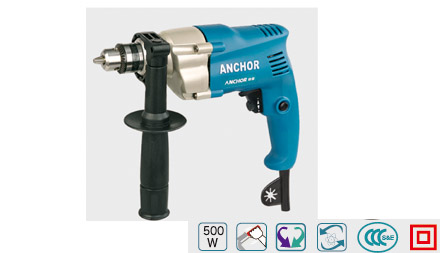

Product Name:Electric Drill
Model
J1Z-TM01-10
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
500
No-Load Speed(r/min)
0-2200
Max.Drilling Capacity
Steel(mm)Φ10Wood(mm)Φ18
Net.Weight (kg)
1.8
Order No
E4
Mill-cut quickly
Performance characteristics

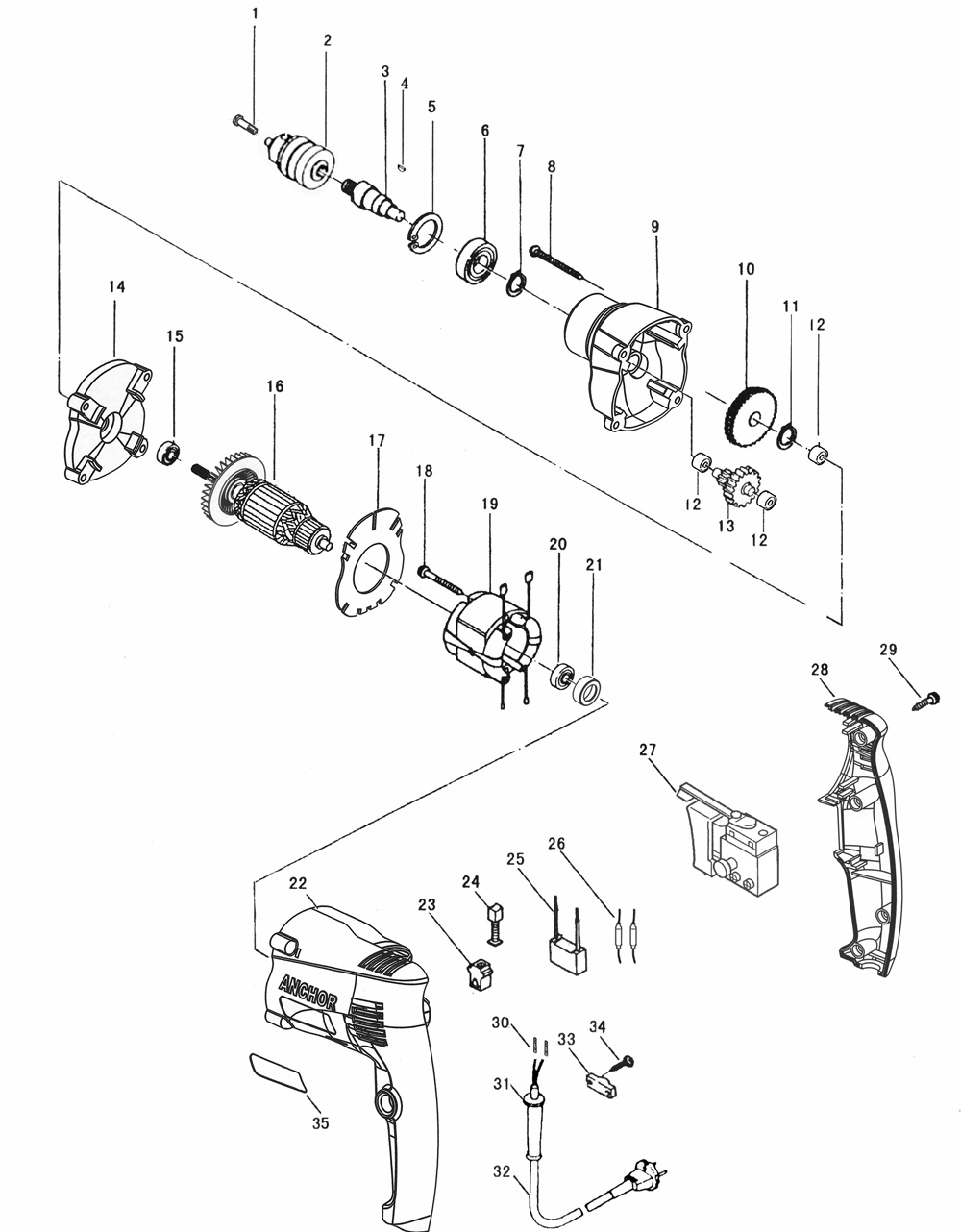

1    partno:235310002    Screw M5*20 (left screw)    12    partno:320510016    Chuck    13    partno:320210071    Output Shaft    14    partno:240510001    Woodruff Key 2.5*10    15    partno:240710005    Circlip for Hole 32    16    partno:250110030    Bearing 6201-2RS    17    partno:240610005    Circlip for Shaft 12    18    partno:234110060    Screw ST4*30    49    partno:530110126    Gear House    110    partno:320110021    Gear (Steel)    111    partno:240610004    Circlip for Shaft 10    112    partno:250110044    Bearing 606-2Z    313    partno:320110142    Gear(Change Gear)    114    partno:530210064    Middle House    115    partno:250110026    Bearing 608-2RS    116    partno:510210341    Armature    117    partno:520310044    Wind-proof Ring    118    partno:234110005    Screw ST4*45    219    partno:510110125    Stator    120    partno:250110066    Bearing 626-2Z    121    partno:140810002    Bearing Sleeve    122    partno:520110446    House    123    partno:430210030    Brush Holder    124    partno:430110018    Carbon Brush    125    partno:440210001    Capacity 0.22uF-2TH    126    partno:440110001    Inductance(10uH)    227    partno:410110062    Switch    128    partno:142810001    Handle Cover    129    partno:233610016    Screw with washer ST4*16    430    partno:450210018    Terminal    231    partno:140310007    Power Cable Jacket    132    partno:420110093    Power Cable 2*0.75*2.7YZW    133    partno:234110002    Screw ST4*14    234    partno:522010012    Strain Relief (Plastic)    135    partno:621911842    Nameplate    1
