Product Name:Electric Drill
Model
J1Z-TM04-6A
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
250
No-Load Speed(r/min)
4000
Max.Drilling Capacity
Steel(mm)Φ6.5Wood(mm)Φ9
Net.Weight (kg)
1.2
Order No
E7
Mill-cut quickly
Performance characteristics

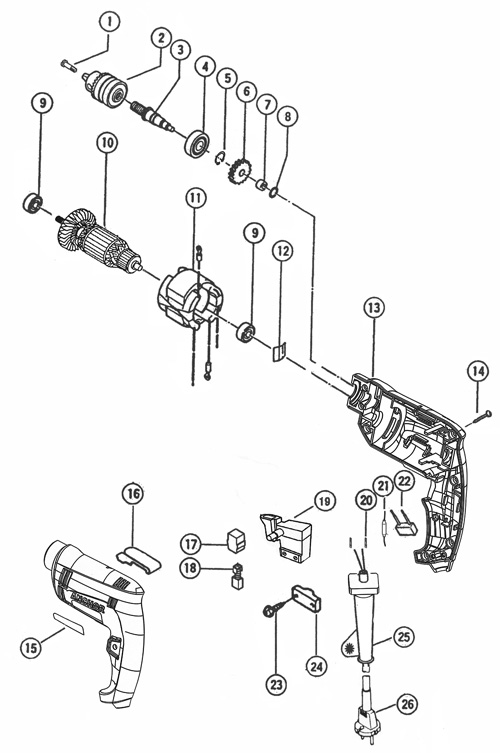

1    partno:235910002    Screw M5*18 (left screw)    12    partno:320510011    Chuck    13    partno:320210068    Output Shaft    14    partno:250110111    Bearing 6001-2RS    15    partno:240610005    Circlip for Shaft 12    16    partno:320110135    Gear    17    partno:330110003    Oil-Impregnated Copper Sleeve    18    partno:140110039    O ring 10*12    19    partno:250110066    Bearing 626-2Z    210    partno:510210350    Armature    111    partno:510110143    Stator    112    partno:241810001    Lock Pin    113    partno:520110478    Housing    114    partno:234610001    Spring for lock pin 8.8*13*0.7*5    715    partno:621911843    Nameplate    116    partno:316410001    Hook    117    partno:430210013    Brush holder    118    partno:430120028    Carbon Brush    119    partno:410110073    Switch (Without Speed Regulation )    120    partno:450210018    Terminal    221    partno:440110004    Inductance (8uH)    221    partno:440210003    Capacity 0.22uF (small)    123    partno:234110015    Screw ST4*16    224    partno:522010012    Strain Relief (Plastic)    125    partno:140310005    Power Cable Jacket    126    partno:420110093    Power Cable 2*0.75*2.7YZW    1
