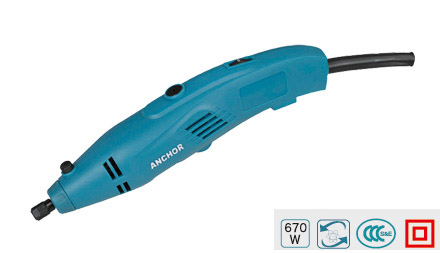

Product Name:Die Grinder
Model
S1J-TM01-10
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
165
Rated Speed(r/min)
30000
Max.Grinding Wheel Diameter(mm)
Φ10
Net.Weight (kg)
0.8
Order No
D2
Mill-cut quickly
Performance characteristics

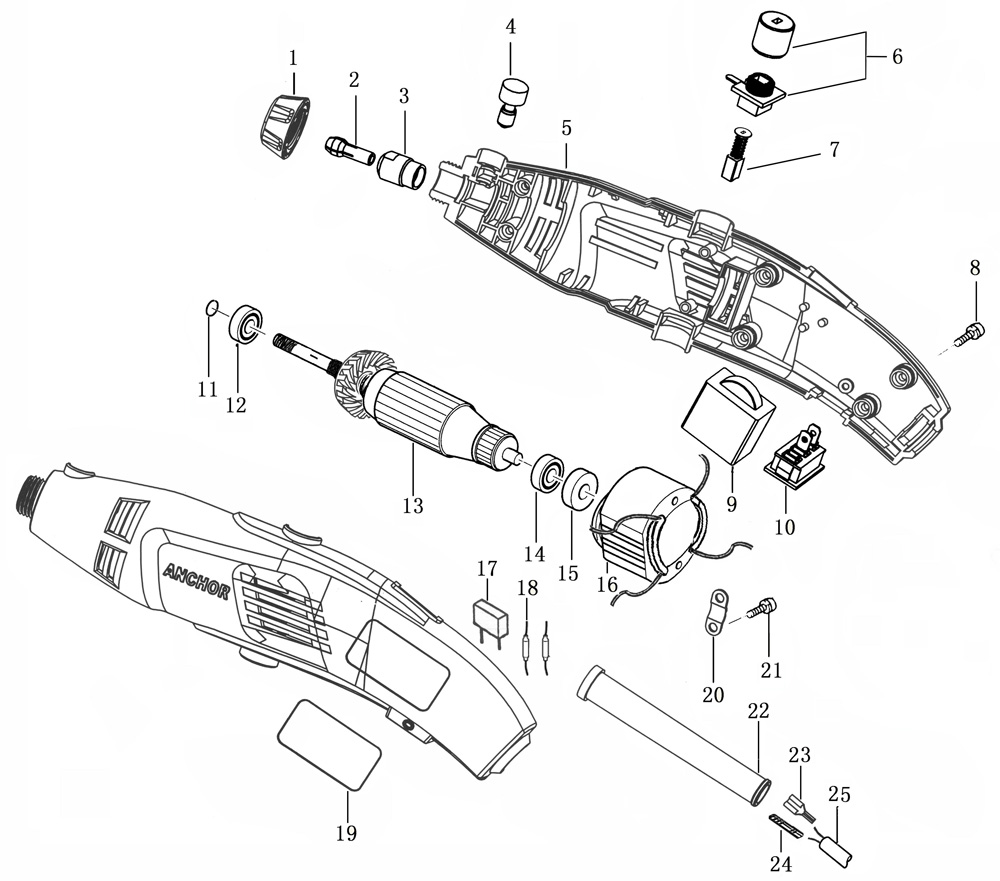

1    partno:522610005    Nut(Plastic)    12    partno:323410002    Spring Chuck    13    partno:221710002    Chuck Nut    14    partno:320710022    Lock Pin    15    partno:520110449    House    16    partno:430220002    Brush Holder (including Brush Cover)    17    partno:430120005    Carbon Brush    18    partno:234110055    Screw ST3*15    69    partno:410110032    Switch Speed Controller    110    partno:410110003    Switch    111    partno:140110024    O Ring 8*1.9    112    partno:250110041    Bearing 698-2Z    113    partno:510210343    Armature    114    partno:250110066    Bearing 626-2Z    115    partno:140810001    Bearing Sleeve    116    partno:510110132    Stator    117    partno:440210003    Capacity 0.22uF (small)    118    partno:440110004    Inductance (8uH)    219    partno:621911850    Nameplate    120    partno:310610002    Pressing Line Plate(Stemped)    121    partno:234110056    Screw ST3*12    222    partno:140310001    Power Cable Jacket    123    partno:450210018    Terminal    124    partno:450210021    Terminal    125    partno:420110093    Power Cable 2*0.75*2.7YZW    126    partno:311910003    Wrench    1
