Product Name:Angle Grinder
Model
S1M-TM01-125
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Max.Wheel Diameter(mm)
Φ125
Hole Diameter of Wheel(mm)
Φ22
Rated Power Input(W)
1550
Rated Speed(r/min)
9000
Net.Weight (kg)
3.2
Order No
A9
Mill-cut quickly
Performance characteristics

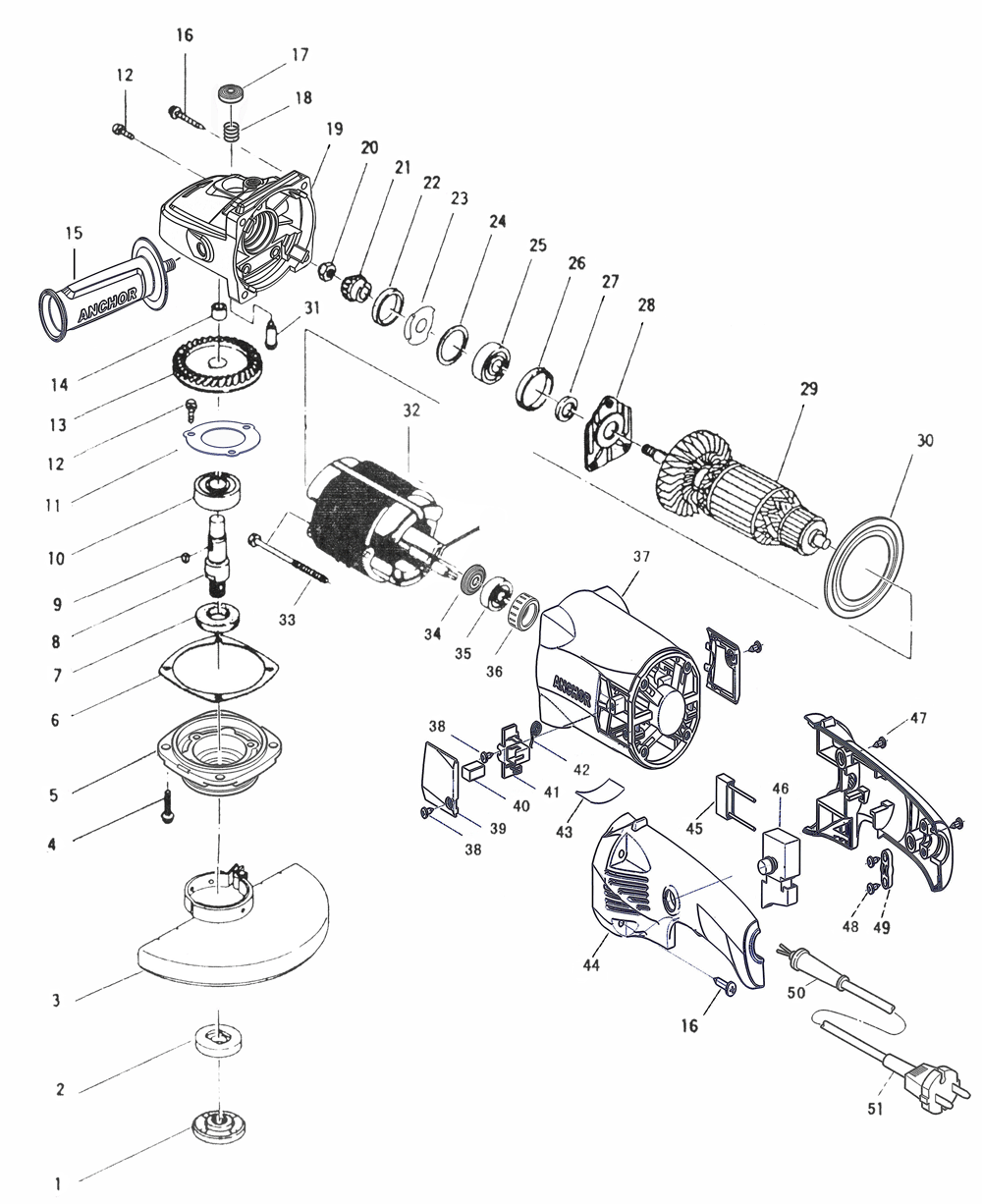

1    partno:323710022    Clamp Nut    12    partno:323810025    Disc Flange    13    partno:311210028    Wheel Guard    14    partno:233810013    Screw M5*14    45    partno:530310163    Gear Case    16    partno:142310002    Seal Paper Pad    17    partno:121110008    Wool Pad22*14*4    18    partno:320210072    Output Shaft    19    partno:240510003    Semi-circle key 3*13    110    partno:250110021    Bearing 6202-DDW    111    partno:311510011    Cover (3 holes 47*28*2.5)    112    partno:233810014    Screw M4*10    613    partno:320110057    Gear    114    partno:250210019    Needle Bearing HK1210    115    partno:520810011    Accesary Handle    116    partno:234110021    Screw ST5*24    817    partno:522410009    Pin Cap    118    partno:340510018    Spring for lock pin 10*14*0.8*5    119    partno:532410118    Gear Case    120    partno:221410002    Nut M8    121    partno:320110102    Bevel Pinion    122    partno:141610009    Shockproof Pillar 27*24*3.5    123    partno:312110001    Gear Pad    124    partno:240110015    Washer 30*24.5*0.4    125    partno:250110019    Bearing 6200-DDW    126    partno:140110036    Seal Ring 33*30*4    127    partno:121110009    Wool Pad 27*20*4    128    partno:311510045    Cover    129    partno:510210336    Armature    130    partno:520310025    Blinker    131    partno:320710029    Lock Pin    132    partno:510110115    Stator     133    partno:234110031    Screw ST4*20    234    partno:521610009    Insulation Ring    135    partno:250110125    Bearing 608-2Z    136    partno:140810014    Bearing Seat    137    partno:520110454    Housing    138    partno:234110033    Screw ST3*10    439    partno:521910014    Brush Cover    140    partno:430110012    Carbon Brush    141    partno:430210029    Brush holder    142    partno:340420010    Coil Spring 4*0.3*4    143    partno:621911825    Nameplate    144    partno:520210007    Handle    145    partno:440210001    Capacity 0.22uF-2TH    146    partno:410110057    Switch    147    partno:234710004    Screw with washer ST4*18    248    partno:233610016    Screw with washer ST4*16    249    partno:522010011    Strain Relief (Plastic)    150    partno:140310002    Power Cable Jacket    151    partno:420110068    Power Cable 2*1*2.7YZW    152    partno:311910010    Wrench    1
